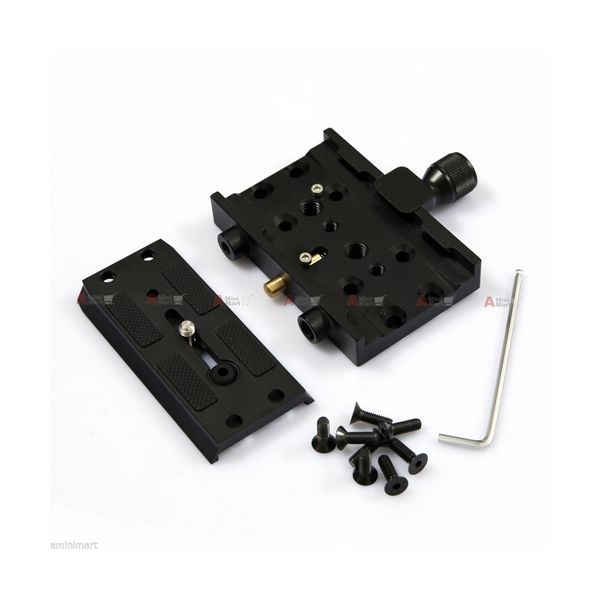

The dovetail quick release plate system originally designed for 15mm rod support system. Both base clamp and quick release plate feature with four M5 countersunk flat head screw holes, Allows you add 15mm rod clamps to assemble a quick release baseplate, great gear for DIYers.
The base clamp is compatible with Manfrotto 501PL / 501PL long quick release plate, Giottos MH621 / MH631 quick release plate. Just reverse the active block.
The quick replease plate is compatible with Manfrotto 501HDV 503HDV 701HDV 519 561 577
The dovetail quick release plate system is for both movie digital SLR camera and HDV.
With 1/4" and 3/8" screw side screw holders, Never forget where's your backup camera screw.
Allows you mount the dovetail quick release plate system onto tripod mount baseplate or camera mount adapter plate.Of course, you can also mount it on to the tripod with 1/4" or 3/8" screw.
* Name: Dovetail Quick Release Plate System fr Camera DSLR Rig Support Mount Base Tripod * Slider dovetail quick release plate. * Main meterial: Aluminium alloy * Color : glass bead blasting and anodized black * With 1/4" screw. * N/W:322g * Anti slide-off lock * Quick release plate size (L* W * T): 104mm*50mm*11mm
Package contains:
1 piece of dovetail quick release plate system 8 pieces of flat head screw 1 piece of allen key
