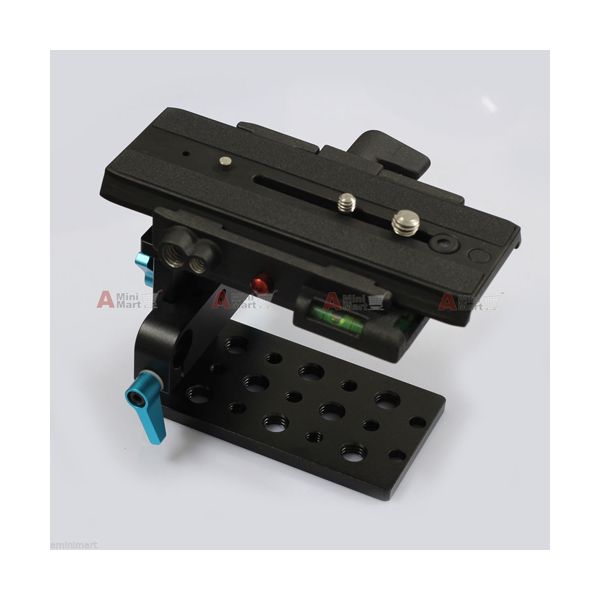

The Tripod Mounting Plate Rod Support Baseplate Type A
Quick release baseplate with two D-RING screw ( 1/4" UNC and 3/8" UNC ), and there are two side screw holders. If the 1/4" screw is on quick release plate, please leave the 3/8" screw in the screw holder. Never lost.
Quick release plate slides forward and back for macro positioning,Features two bubble levels and spring loaded video pin as well as a safety button lock,
There are 7x 1/4" and 8x 3/8" threaded mounting holes for tripod and ballhead,
Made of durable anodizing black aluminum.
* Name: Tripod Mounting Plate Rod Support Baseplate Type A * Anodizing black finish * quick release plate dimensions (L x W x T): 5.5 x 2.2 x 0.4" * Material: aluminum * Seven 1/4" threaded mounting holes * Eight 3/8" threaded mounting holes * Made by CNC machine * Rod distance:60mm * Fits diameter 15mm rods * M4 screw knob
Package contains:
1 piece of Camera mouting plate 1 piece of mini Cheese plate 1 piece of rising rod clamp block 1 piece of MH-631 quick release system 2 pieces of allen key 8 pieces of flat head screws
