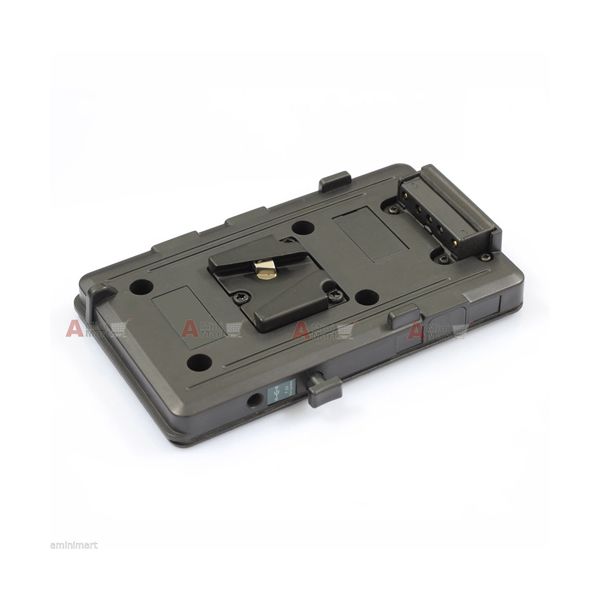

The GP-S-7.2 V-mount battery plate allows you power your HDV and light / light panel at same time. it output 12V by D-Tap outlet and 7.2V by DC outlet.
The V-mount battery plate features with reserved ports for DC, Power switch and a extra D-Tap outlet, DIYers' favorite.
It comes with a firehose connector cable and a D-Tap / DC cable
The BP battery mount can be mounted on to the back of LCD monitor / Power supply station / steadicam / power plate.
* Name: GP-S-7.2 V-mount V-lock BP Battery Adapter Plate * Main material: ABS * Dimension:3.2" X 5.6" * N/W:334g * D-tap connector port output 12V * DC port output: 7.2V.
D-Tap cable: * Converts from D-Tap Plug (Male) to DC connector. * DC Plug : 5.5 mm OD, 2.5 mm ID * DC plug polarity by default: * Inner contact - positive (+) * Outer contact - negative (-)
DC-Cable: * Converts from HDV Camera to DC connector. * DC Plug : 3.5 mm OD, 1.5 mm ID * DC plug polarity by default: * Inner contact - positive (+) * Outer contact - negative (-)
Package contains:
1 pieces of GP-S-7.2 V-mount V-lock BP Battery Adapter Plate 1 pieces of DC cable 1 piece of D-Tap / DC cable
